PEAK CANopen Magic Professional

2,024,000 부가세포함

수량
총 금액



CANopen Magic

CANopen® Analysis, Development, and Simulation Software for Windows®

CANopen Magic ProfessionalCANopen Magic is a software to configure, monitor, analyze, and simulate devices and networks that are based on CANopen and CANopen FD. CANopen Magic is available in the versions Lite, Professional, and Ultimate.

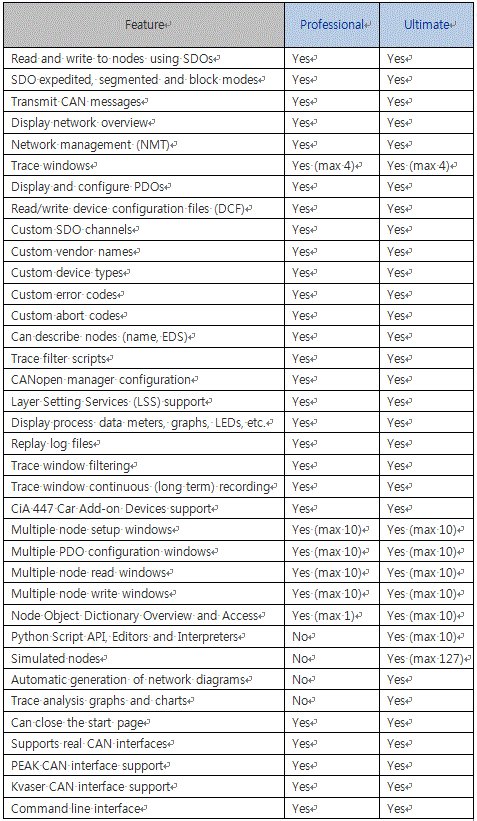

All versions support:

  • Reading and writing objects using SDO transfers
  • Support of SDO modes Expedited, Segmented, and Blocked
  • Symbolic trace interpretation (node X, access to object Y)
  • Long-term trace recording
  • Support of CANopen FD

In addition, the Professional version offers:

  • Window for simplified PDO configuration
  • Graphical data display
  • Import of symbolic information from CANopen EDS files
  • Multiple symbolic trace windows® with individual filters
  • Support of complex application profiles like CiA® 447
  • Integrated LSS master module
  • Command line support

In addition, the Ultimate version offers:

  • Simulation of CANopen devices based on EDS files
  • Display of network diagram
  • Display of trace analysis diagram

Detailed information on this and other software products from Embedded Systems Academy can be found on the website www.canopenmagic.com. On request, we also sell other software products of Embedded Systems Academy.

Please note


Prices for single use and installation with computer-bound registration process via Internet. The software is delivered electronically.
Therefore, please enter the e-mail address of the intended recipient in the delivery address or in the comments when ordering.


System requirements


  • Windows® 11, 10, 8.1, 7 (32/64-Bit)
  • Minimum of 512 MB RAM and 1 GHz CPU
  • Internet connection
  • PC CAN Interface from PEAK-System

CANopen Magic Professional

CANopen configuration and analysis tool

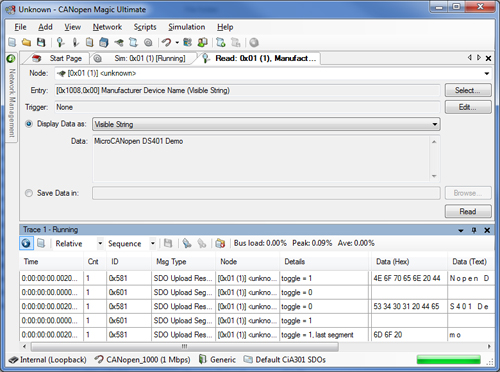

SDO Reads / Writes





Customized Window Layouts

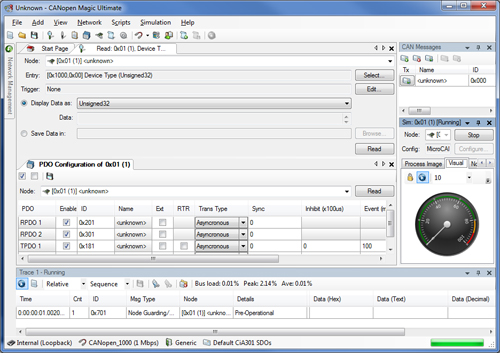

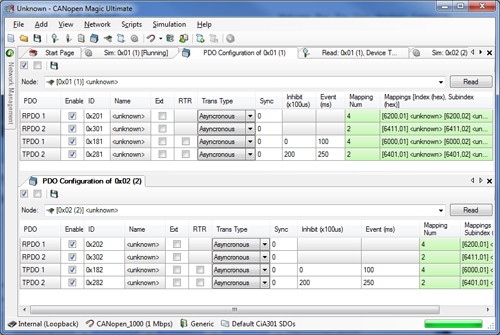

PDO Configuration

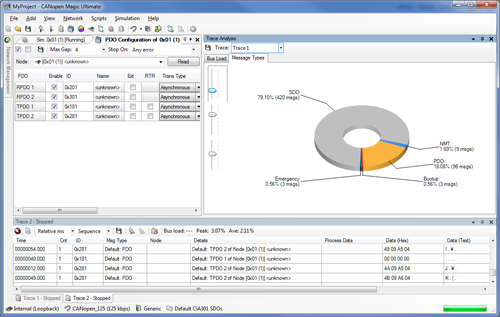

Trace Analysis







제조사 : Embedded Systems Academy (미국)



납기 : 주문 후 약 7일 ~ 10일
